Body with longitudinal beam scanning
A system with a spray gun and a full digital beam sweeper for thick layers of single, multi pocket and large capacity crucibles.
The customized electron gun source with crucible turret system is used for special applications and extends the product time between source maintenance.

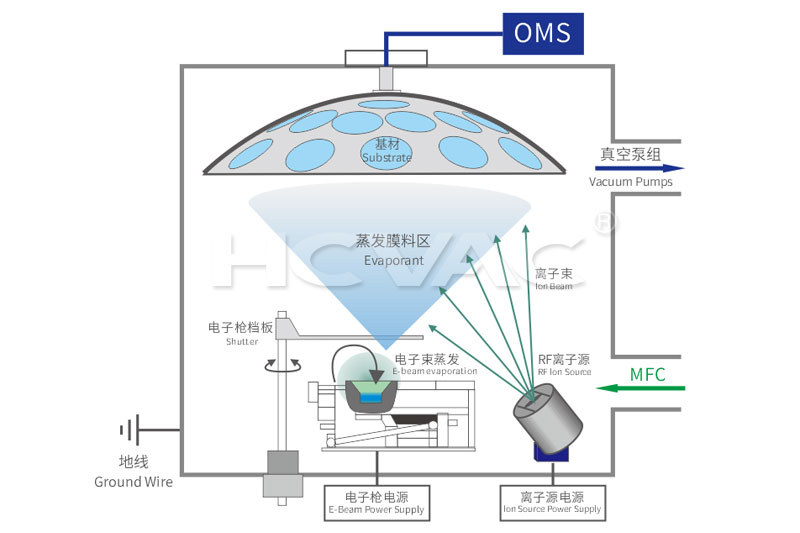

Ion assisted evaporation（IAD）
Ion source technology can provide lower process temperature, shorter process time and enhanced film performance for applications in Photonics and optoelectronics.

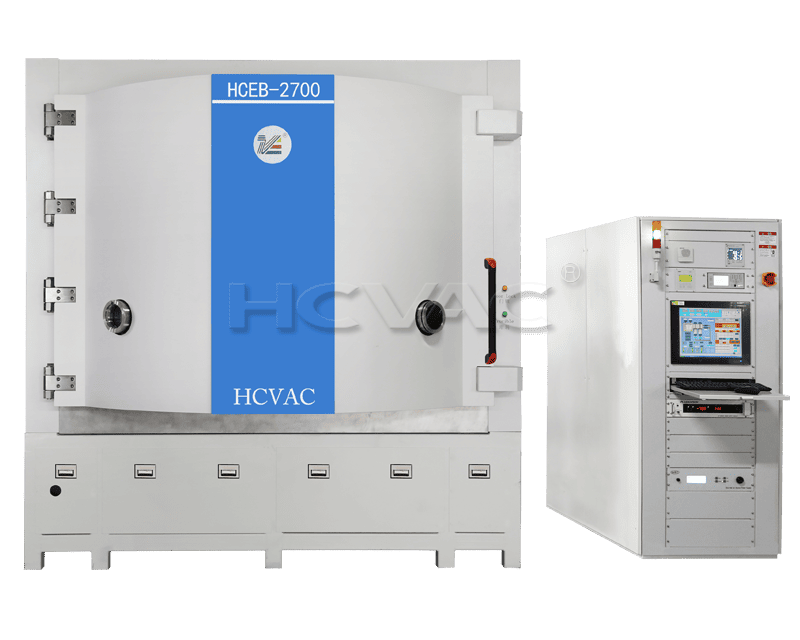

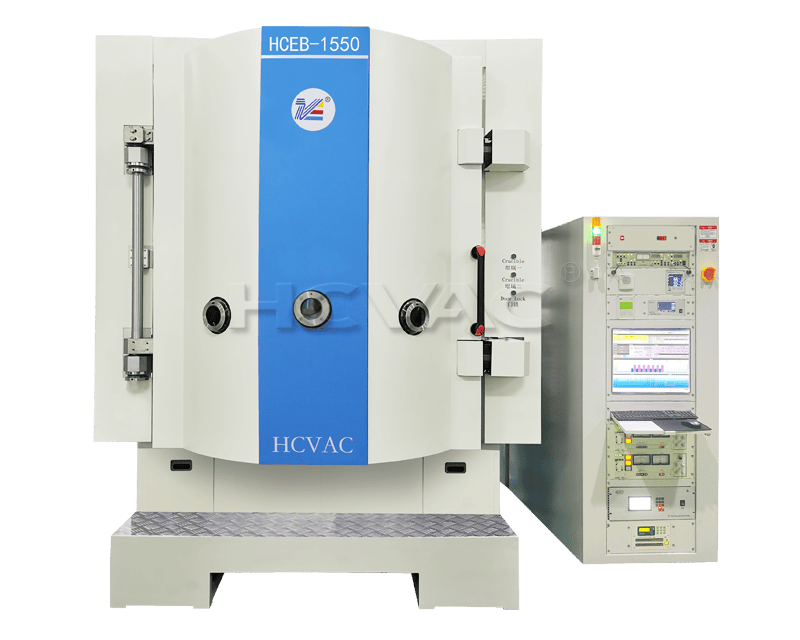

HCEB series E-beam evaporation optical coater adopts advanced electron gun evaporation and ion assisted deposition (IAD) technology to deliver thin film deposition and etch capabilities for precision optics, optoelectronics and semiconductor applications to customers around the globe.
From deposition of multilayer dielectrics and metals, to TCOs or whole range of compounds, it can be configured just the way you need for directional coating, enhanced thickness uniformities and the tightest optical, mechanical and environmental specifications.
HCVAC brings you the complete solution including processes and substrate handling knowhow on a platform with proven production reliability for the best ever cost of ownership.
