--Designed For High-end Bathroom Products Coating

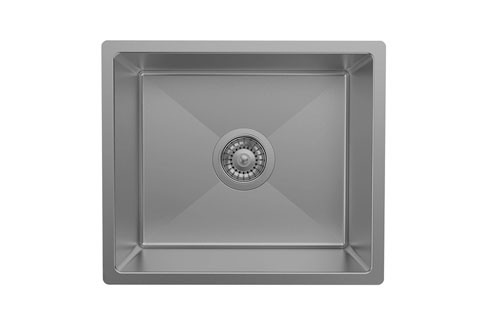

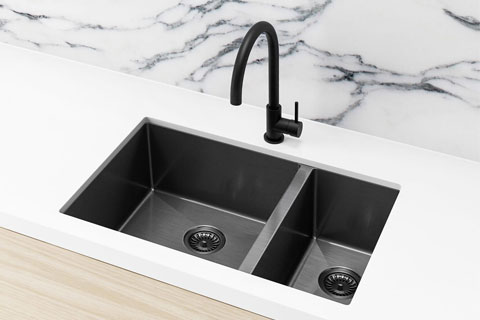

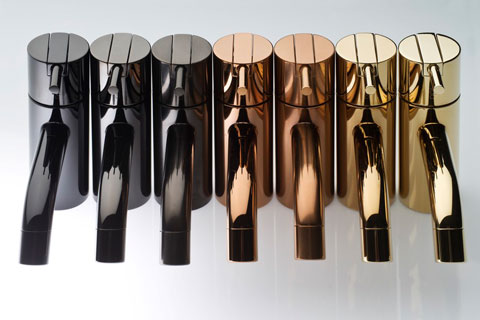

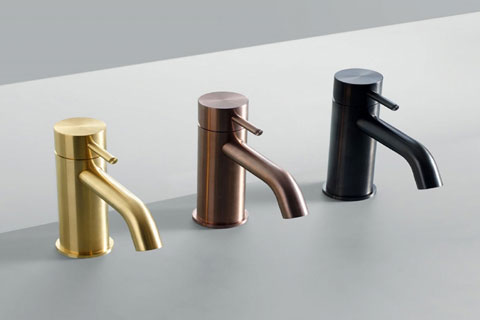

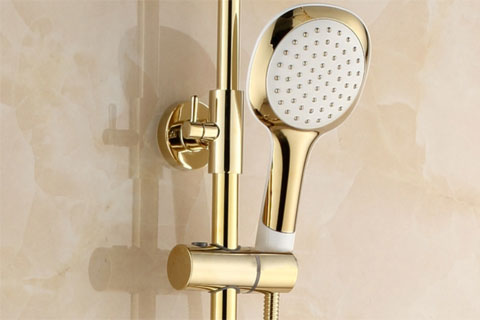

This coating equipment, designed for bathroom products, utilizes arc ion plating and magnetron sputtering technologies. It is suitable for faucets, sinks, showerheads, locks, and architectural hardware. The machine offers a variety of coatings, including decorative, hard, water-resistant, fingerprint-resistant, and antimicrobial layers.
This machine not only improves the adhesion and surface smoothness of coatings but also enhances the durability, corrosion resistance, and antimicrobial properties of the products. The process is efficient, with low coating costs per product, helping you enhance product competitiveness.
Key Features of Bathroom Products Decorative PVD Plating Machine
High deposition rates to boost productivity
Space-saving design, easily integrates into production lines
Ensures consistent coating thickness with accurate control
Delivers high-purity, dense, and uniform films
Ideal for coating metals, alloys, and oxides
Allows for remote diagnostics and technical support for seamless operation
\\This machine integrates cathode arc ion coating, magnetron sputtering, and pulsed bias techniques into one system, becoming a leading technology for hardware coating.
It can operate the arc or magnetron sputtering system independently, allowing them to run at different stages for optimal results. For example, the arc system is used initially for cleaning and base coating, enhancing adhesion with high-energy particle bombardment, followed by the magnetron system for a smooth, refined coating. Additionally, it can be equipped with ion sources to meet multi-functional coating needs.
| Mode | HCMA-1619 |
| Size | Ф1600×H1900mm |
| Coating | Multi-function metal coating,composite membrane, transparent conductive coating, increase return to shoot coating, electromagnetic shielding coating, decorative coating, etc |
| Power supply | DC magnetron sputtering power supply,MF sputtering power supply,high pressure ion bombard power supply |
| Target | DC magnetic control target, medium frequency twin target, plane target and cylindrical target |
| Structure | Vertical signal door, vertical double doors |
| Pump system | Molecule pump(diffusion pump)+Roots pump +Mechanical pump+Holding pump(optional: turbo pump,poly cold system) |
| Air system | Mass flow controller(1-4road) |
| Ultimate vacuum | 6×10-4pa（no-loading,clean chamber） |
| Pumping time | No-loading from air to 5×10-3pa ＜13mins |
| Workpiece motion mode | 6 axis / 8axis/9axis public and self rotation/frequency conversion stepless speed regulation |
| Control mode | Manual+semi-automatic+Automatic integration/touch screen+PLC |
| Remark | We can design the dimension of the equipment according to customers special technique requirement. |
Looking for a solution tailored to your needs? Our team is ready to provide you with expert guidance and support.
