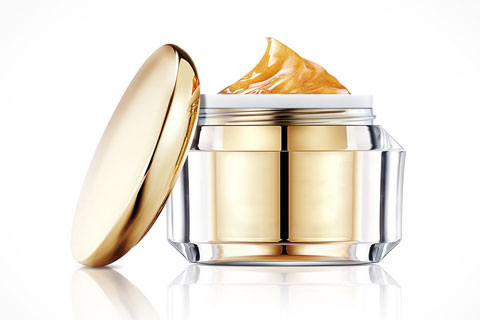

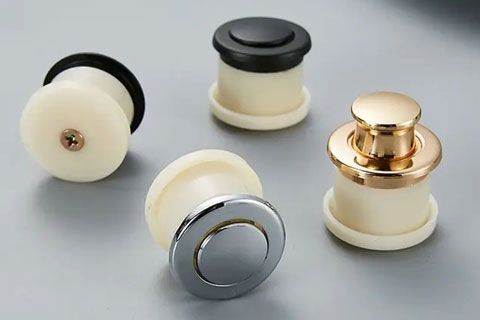

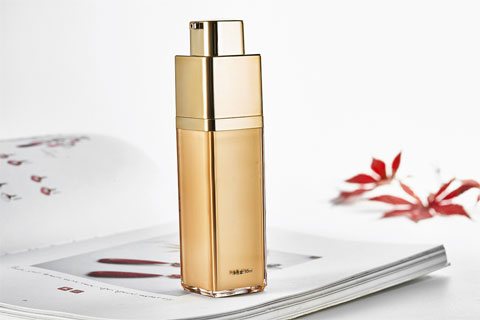

Applied industries: Widely used in automotive, electronics, small appliances, clocks, watches, toys, cell phones, cosmetics, tableware, sanitary ware, shoe heels, and various plastics (ABS, PS, PP, PC, PVC, PET, nylon), metals, glass, ceramics, TPU, and more.
Coating effects: Standard finishes, matte (semi-matte or fully matte), wrinkled, lampworking, raindrops, and seven-color effects.
Coating colors: Gold, silver, red, blue, green, purple, and more.
Customization: Vacuum chamber dimensions, vacuum units, and electric control systems can be designed and configured to meet your specific requirements.
Key Features of Evaporation Decorative PVD Coating Machine
Large chamber, 6/8-axis rotating frame, and high efficiency for increased production
Fully automated repeatable coating process
Easy to operate and maintain
Low coating cost per unit
Remote diagnostics for efficient support
Eco-friendly, pollution-free production
The machine uses resistance heating in the vacuum chamber to melt and vaporize metal wire (such as aluminum), which then deposits as a smooth, high-reflectivity film on the substrates, enhancing their appearance.
Features: Reasonable structure, uniform film, high-quality coating, fast pumping speed, short cycle time, high efficiency, easy operation, low energy consumption, and stable performance.
| Mode | HCRE-2022 |
| Size | Ф2000×H2200mm |
| Coating | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc |
| Power supply | Thermal evaporation power, ion bombard power, RF power |
| Structure | Vertical double/single door, horizontal single door, pump system postposition |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Ultimate vacuum | 8×10-4 pa（no-loading,clean chamber） |
| Pumping time | No-loading from air to 5×10-2pa ＜6mins |
| Workpiece motion mode | 6 axis/8 axis/9 axis Public rotation/Frequency control |
| Control mould | Manual/Automatic all-in-one mode, Touching screen+PLC |
| Remark | We can design the dimension of the vacuum chamber according to customer’s demand |
| Mode | HCRE-1820 |
| Size | Ф1800×H2000mm |
| Coating | Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc |
| Power supply | Thermal evaporation power, ion bombard power, RF power |
| Structure | Vertical double/single door, horizontal single door, pump system postposition |
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump +Holding pump |
| Ultimate vacuum | 8×10-4 pa（no-loading,clean chamber） |
| Pumping time | No-loading from air to 5×10-2pa ＜6mins |
| Workpiece motion mode | 6 axis/8 axis/9 axis Public rotation/Frequency control |
| Control mould | Manual/Automatic all-in-one mode, Touching screen+PLC |
| Remark | We can design the dimension of the vacuum chamber according to customer’s demand |
Looking for a solution tailored to your needs? Our team is ready to provide you with expert guidance and support.
