This machine can be used for depositing metal films such as TiN, TiC, ZrN, CrN, Nickel, Cr, Cu, and other compound films. It also supports multi-layer superhard coatings, multi-component films, and gold-colored titanium nitride coatings.

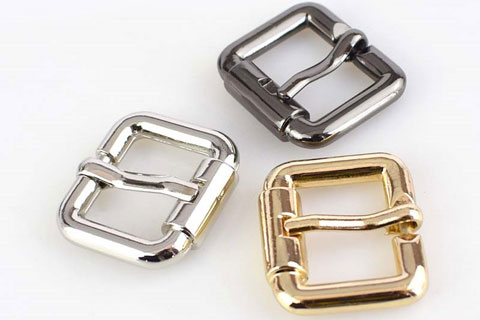

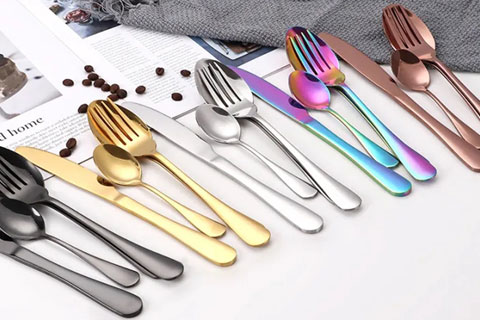

It is widely applied for decorative coatings on car wheels, golf clubs, watches, hardware, lamps, eyeglass frames, ceramics, and glass, as well as superhard coatings on tools and molds.
Key Features of HCCA Series ARC ION Decorative PVD Plating Machine
Consistent deposition across the entire chamber
High deposition rate, high ionization efficiency, and excellent production output
Easy to operate and maintain
Low coating cost per unit
Remote diagnostics and technical assistance available
Clean process with no pollution
Arc ion coating machine is a high-efficiency, environmentally friendly, and pollution-free system. It features a fast deposition rate, high ionization rate, large ion energy, easy operation, low cost, and high production capacity.
The principle of vacuum arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation. The material is ionized, and pulsed bias technology is applied to increase the energy and activity of deposited particles, thereby enhancing the coating properties. It can deposit coatings on both metal and non-metal surfaces.
| Mode | HCCA-1215 |
| Size | Ф1200×H1500mm |
| Coating | Gold Titanium Nitride, black titanium carbide,rainbow titanium oxide,wear-resisting coating,super-hard coating,diamond coating,metal decorative coating and so on. |
| Power supply | DC power supply,MF power supply,electrical arc power supply,filament (power) supply, active power supply, plused bias power supply |
| Target type | Multi-arc,MF twin targets or flat target can be choiced |
| Vacuum chamber structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition |
| Vacuum system | Machanicial pump+Roots pump+Diffussion/Turbo pump+Holding pump |
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) ,heating by stainless steel heater pipe |
| Air system | Mass flow control system（1-4road） |
| Ultimate vacuum | 6×10-4pa（No-loading,clean chambe） |
| Pumping time | No-loading from air to 5×10-3pa ＜13mins |
| Pressure-keeping rates | 1h≤0.6pa |
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min |
| Control mode | Manual＋semi-automatic/touch screen＋PLC |
| Remark | We can design the dimension of the equipment according to customers special technique requirement |
| Mode | HCCA-1618 |
| Size | Ф1600×H1800mm |
| Coating | Gold Titanium Nitride, black titanium carbide,rainbow titanium oxide,wear-resisting coating,super-hard coating,diamond coating,metal decorative coating and so on. |
| Power supply | DC power supply,MF power supply,electrical arc power supply,filament (power) supply, active power supply, plused bias power supply |
| Target type | Multi-arc,MF twin targets or flat target can be choiced |
| Vacuum chamber structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition |
| Vacuum system | Machanicial pump+Roots pump+Diffussion/Turbo pump+Holding pump |
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) ,heating by stainless steel heater pipe |
| Air system | Mass flow control system（1-4road） |
| Ultimate vacuum | 6×10-4pa（No-loading,clean chambe） |
| Pumping time | No-loading from air to 5×10-3pa ＜13mins |
| Pressure-keeping rates | 1h≤0.6pa |
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min |
| Control mode | Manual＋semi-automatic/touch screen＋PLC |
| Remark | We can design the dimension of the equipment according to customers special technique requirement |
| Mode | HCCA-1619 |
| Size | Ф1600×H1900mm |
| Coating | Gold Titanium Nitride, black titanium carbide,rainbow titanium oxide,wear-resisting coating,super-hard coating,diamond coating,metal decorative coating and so on. |
| Power supply | DC power supply,MF power supply,electrical arc power supply,filament (power) supply, active power supply, plused bias power supply |
| Target type | Multi-arc,MF twin targets or flat target can be choiced |
| Vacuum chamber structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition |
| Vacuum system | Machanicial pump+Roots pump+Diffussion/Turbo pump+Holding pump |
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) ,heating by stainless steel heater pipe |
| Air system | Mass flow control system（1-4road） |
| Ultimate vacuum | 6×10-4pa（No-loading,clean chambe） |
| Pumping time | No-loading from air to 5×10-3pa ＜13mins |
| Pressure-keeping rates | 1h≤0.6pa |
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min |
| Control mode | Manual＋semi-automatic/touch screen＋PLC |
| Remark | We can design the dimension of the equipment according to customers special technique requirement |
| Mode | HCCA-1820 |
| Size | Ф1800×H2000mm |
| Coating | Gold Titanium Nitride, black titanium carbide,rainbow titanium oxide,wear-resisting coating,super-hard coating,diamond coating,metal decorative coating and so on. |
| Power supply | DC power supply,MF power supply,electrical arc power supply,filament (power) supply, active power supply, plused bias power supply |
| Target type | Multi-arc,MF twin targets or flat target can be choiced |
| Vacuum chamber structure | Vertical single(side front) door(double water jacket type water cooling or sink type cooling), pump system postposition |
| Vacuum system | Machanicial pump+Roots pump+Diffussion/Turbo pump+Holding pump |
| Heating system | Room temperature to 350 ℃ adjustable and controllable(PID control) ,heating by stainless steel heater pipe |
| Air system | Mass flow control system（1-4road） |
| Ultimate vacuum | 6×10-4pa（No-loading,clean chambe） |
| Pumping time | No-loading from air to 5×10-3pa ＜13mins |
| Pressure-keeping rates | 1h≤0.6pa |
| Work piece rotary | Top rotary/bottom rotary+public rotation and self-rotations frequency conversion stepless controllable and adjustable,0-20 shift/min |
| Control mode | Manual＋semi-automatic/touch screen＋PLC |
| Remark | We can design the dimension of the equipment according to customers special technique requirement |
