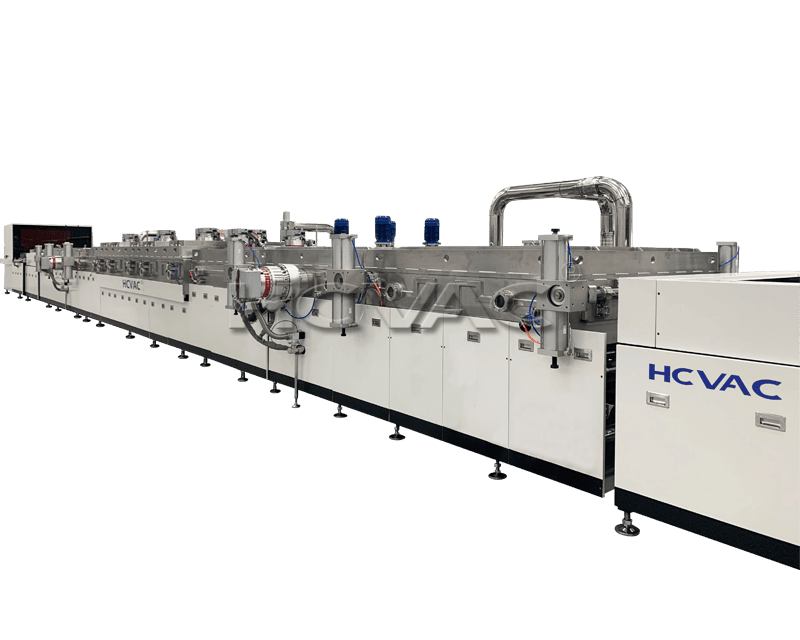

The machine is designed for coating NdFeB and other magnetic materials. It features a rotating cathode to improve target material utilization and a precious metal recovery system to control production costs.
Using arc, magnetron sputtering, and thermal evaporation with high-pressure ion bombardment, it efficiently plates dense coatings of aluminum, dysprosium, terbium, and other heavy rare earth materials on NdFeB. This process delivers magnetic steel with similar performance at a lower cost, providing cost savings for businesses.
The machine offers fast deposition, dense films, high anti-corrosion properties, and a pollution-free production process to meet customer requirements.
Key Features of Magnetic Material Inline Coating System
Save material and maintenance time, resulting in maximum utilization
Stable process and excellent gas separation
High splash rate, low oxidation rate and low gas consumption
High uptime and fast maintenance cycle
Flexible programmable logic controller
Allows configuration according to individual production needs
| Item | Performance |
| Substrate | Nd2Fe14B |
| Workpiece size | Various specifications, thickness 2-6mm |
| Pallet size | 1640mm×1640mm |
| Rhythm | 10-45min |
| Film material | TB, Dy and their alloys |
| Film thickness | 3-18um |
| Film uniformity | ≤±5% |
| Dynamic rate | ≥90% |
| Capacity | 2 tons / day |
